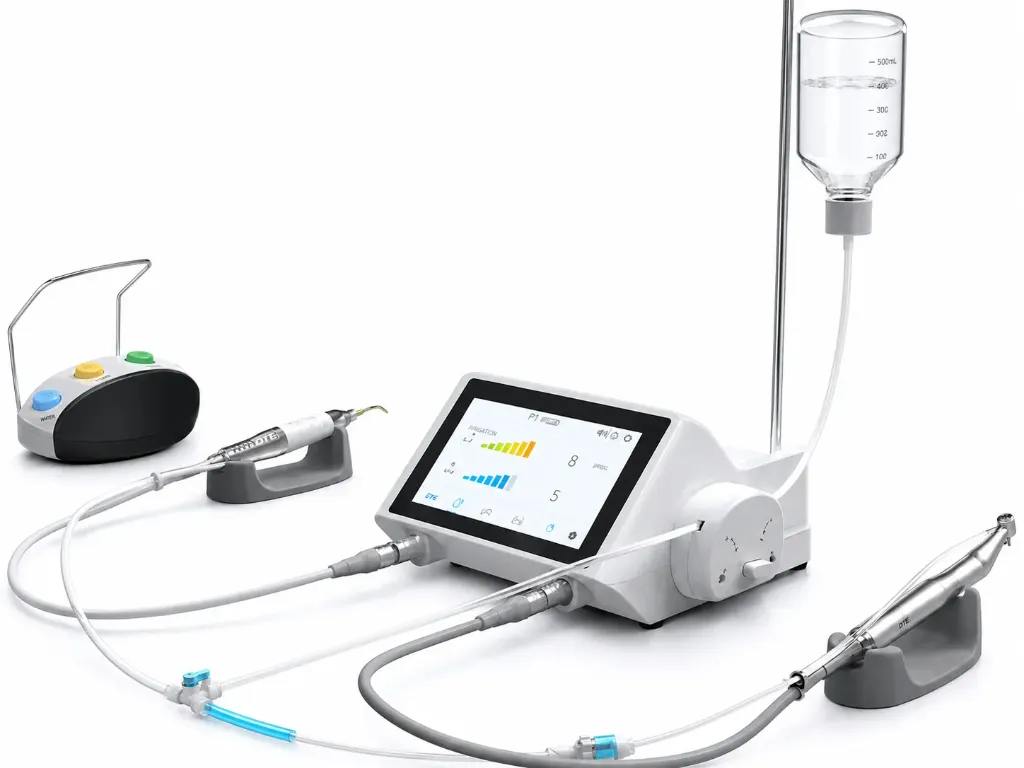

The COXO C-Explorer SG Dental Surgical System is an advanced 3-in-1 oral surgery platform combining implant motor function, surgical function and piezo ultrasonic technology in a single intelligent system.
Designed for modern dental professionals, the C-Explorer SG provides a complete solution for a wide range of clinical applications, including dental implant surgery, bone surgery, periodontal procedures, root canal treatments, tooth extraction, apicoectomy and sinus floor elevation.
With powerful performance, intelligent programming, multiple clinical modes and precise control, the C-Explorer SG helps clinicians improve workflow efficiency while maintaining exceptional surgical accuracy and patient safety.
Three Integrated Functions in One System
1. Surgery Function
The surgical module is designed to support a wide range of oral surgery procedures, including:
- Bone surgery
- Periodontal surgery
- Root canal treatment
2. Implant Function
The implant module provides clinicians with advanced control and flexibility during dental implant procedures.
Implant Function Advantages
- Fully customisable implant programmes allowing surgeons to personalise treatment steps according to their preferred workflow.
- Compatible with multiple contra-angle speed ratios for excellent system versatility.
- Independent irrigation system for easier operation and improved surgical visibility.
- Dual-level LED brightness adjustment for optimal illumination during implant placement.
- Precise motor control for predictable implant procedures.
Compatible speed ratios include:
- 20:1
- 1:4.2
- 1:5
- Additional compatible handpiece configurations
3. Piezo Ultrasonic Function
The integrated piezo surgery system provides precise ultrasonic bone cutting with excellent control and minimal invasiveness.
Piezo Function Features
- Customisable programmes with 10 adjustable speed ratios.
- Optimised presets for common clinical applications:
Tooth Extraction
Dedicated extraction programmes designed to support safe and controlled procedures.
Bone Saw
High-efficiency cutting programmes compatible with:
- Reciprocating saws
- Sagittal saws
- Oscillating saws
Apicoectomy
Pre-set programmes with recommended operating speeds for precise root-end surgery.
Sinus Floor Elevation
Dedicated settings designed to support safe and predictable sinus lift procedures.
Technical Specifications
General Specifications
Product type: Dental Surgical System / Implant & Piezo Surgery Platform
Functions:
- Implant Motor
- Surgical Motor
- Piezo Ultrasonic Surgery
- Power supply: AC 100–240 V, 50/60 Hz
- Maximum power: 180 VA
- Operation mode: 60 seconds ON / 10 seconds OFF
- Input voltage: DC 30 V
Ultrasonic Handpiece Specifications
- Water flow rate: 20–100 ml/min ±20%
- Primary tip amplitude: 8–63 μm
- Transverse tip amplitude: 0.5–15 μm
- Vibration frequency: 30 kHz ±15%
Motor Handpiece Specifications
- Motor speed range: 300–44,000 rpm
- Speed range with 1:4.2 ratio: 1,200–220,000 rpm
- Speed range with 1:5 ratio: 1,500–200,000 rpm
- Speed range with 20:1 ratio: 15–2,200 rpm
Torque Range
- Motor only: 100–1,600 N·cm
- With 20:1 contra-angle: 5–80 N·cm
Irrigation System
- Adjustable water flow: 5 levels
- Maximum flow: >100 ml/min
