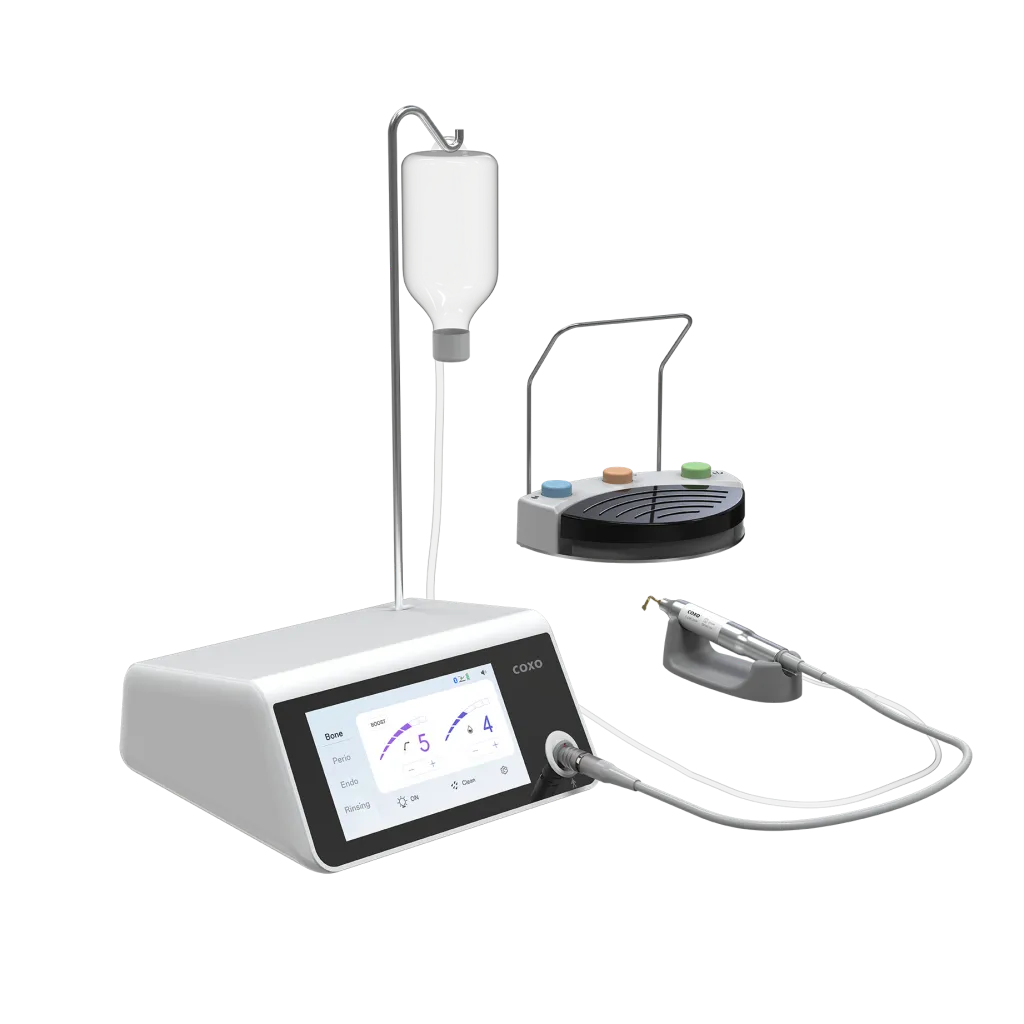

The COXO C-Explorer Pro Ultrasonic Surgical System is an advanced piezoelectric surgical unit designed to provide dental and oral surgery professionals with exceptional precision, safety and control during minimally invasive procedures.
Using advanced ultrasonic vibration technology, the C-Explorer Pro enables highly accurate bone cutting while preserving surrounding soft tissues, making it an ideal solution for oral surgery, implantology, bone surgery and minimally invasive dental procedures.
Featuring intelligent power adjustment, a lightweight ergonomic handpiece, cold cutting technology and micrometre-level surgical precision, the C-Explorer Pro delivers predictable clinical performance with improved patient comfort and enhanced surgical safety.
Key Features
- Large 7-inch colour touchscreen for intuitive operation and easy parameter adjustment.
- Detachable water hose and handpiece cable for simplified maintenance and improved safety.
- Intelligent power adjustment system that automatically adapts output according to cutting resistance.

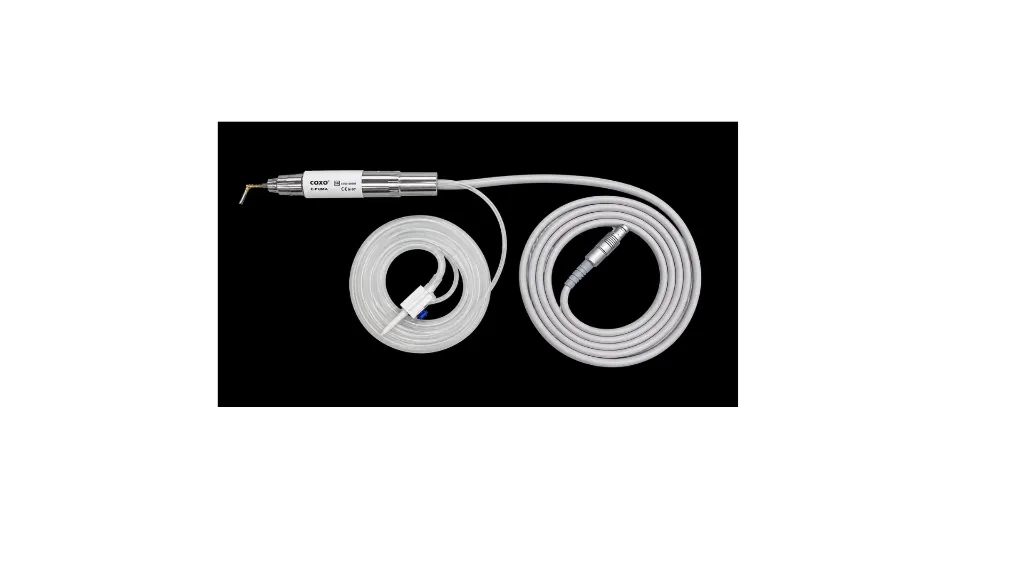

- Lightweight ergonomic handpiece weighing approximately 108 g, designed for reduced operator fatigue.
- Advanced ultrasonic vibration technology for precise and minimally invasive bone cutting.
- Adjustable LED illumination with On, Off and Automatic modes.
- Seven-level water flow adjustment for optimal cooling control.
- Designed for intermittent operation: 60 seconds ON / 10 seconds OFF.
Minimally Invasive Ultrasonic Cutting Technology
The C-Explorer Pro provides exceptional surgical precision through controlled ultrasonic micro-vibrations:
- Radial amplitude: 8–63 μm
- Transverse amplitude: 1.5–12 μm
The vibrating surgical tip creates uniform contact with bone tissue, allowing controlled removal of bone with minimal force. The micrometre-level cutting precision helps reduce surgical trauma and enables smaller surgical access areas.
Minimum surgical incision capability:
- Length: 3.5 mm
- Width: 0.5 mm
This precision allows clinicians to perform delicate procedures with improved control and reduced tissue disruption.
Soft Tissue Protection
The ultrasonic operating frequency of 30 kHz ±15% (24–36 kHz range) enables selective cutting of mineralised tissue while significantly reducing the risk of damage to surrounding soft tissues, including:
- Nerves
- Blood vessels
- Mucosa
- Other delicate anatomical structures
This makes the C-Explorer Pro particularly suitable for procedures where precision and tissue preservation are essential.
Cold Cutting Technology
The C-Explorer Pro is designed to minimise heat generation during bone cutting.
With effective irrigation control, the surgical site temperature can be maintained below 38°C, helping to protect cellular vitality and support optimal healing conditions.
Clinical Benefits
Maximum Surgical Precision
Micrometre-level ultrasonic movement provides excellent control, allowing clinicians to perform complex procedures with greater accuracy and confidence.
Minimally Invasive Approach
Reduced cutting amplitude and controlled vibration help minimise surgical trauma, supporting smaller incisions and improved patient recovery.
Improved Safety
Selective bone cutting technology reduces the risk of accidental soft tissue injury compared with conventional mechanical instruments.
Comfortable Clinical Workflow
The lightweight handpiece and intuitive touchscreen interface improve ergonomics and simplify operation during demanding surgical procedures.
Efficient Maintenance
The detachable water hose and cable design allow easier cleaning, maintenance and improved infection control.
Technical Specifications
- Product type: Ultrasonic Surgical System / Piezo Surgery Unit
- Power supply: 100–240 V, 50/60 Hz
- Maximum power: 150 VA
- Fuse: 3.15AT 250V
- Working frequency: 30 kHz ±15%
- Frequency range: 24–36 kHz
- Radial amplitude: 8–63 μm
- Transverse amplitude: 1.5–12 μm
- Maximum water flow: 100 ml/min
- Water volume settings: 7 levels
LED modes: On, Off, Auto
- Handpiece dimensions: 130.3 × Ø33.5 mm
- Handpiece weight: approximately 108 g
- Unit weight: 2.4 kg
- Operation mode: 60 seconds ON / 10 seconds OFF
The COXO C-Explorer Pro Ultrasonic Surgical System is the ideal choice for professionals seeking a high-performance piezo surgery unit, ultrasonic bone surgery device, or dental ultrasonic surgical system that combines precision, safety and minimally invasive technology.
