C-EXPLORER PRO Ultrasonic Surgical Motor
Power-supply voltage: 100-240V 50/60Hz 150VA
Device forintermittent operation: 60s ON, 10s OFF
Fuses: 3.15AT 250V
Flow: 20-100ml/min
Radial amplitude: 20-200um
Transverse amplitude: 1.5 -12um
Working tips frequency: 24-36kHz

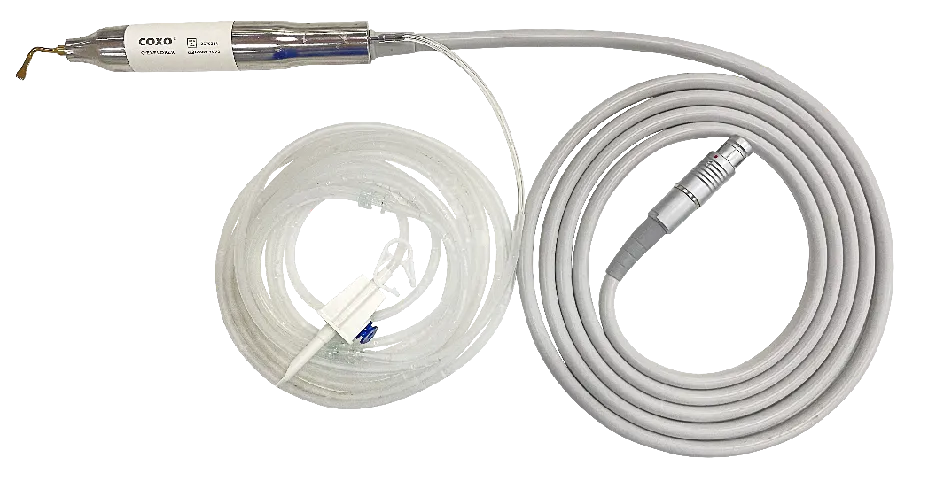

Handle: 130.3*Φ33.5mm
Tips (basic kit): PS1/PS2/PS4/PS5/PL3/PC1

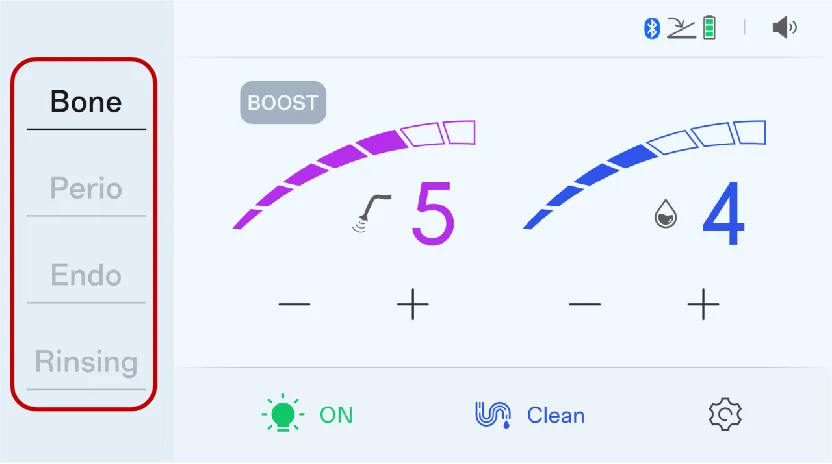

ULTRA STRONG POWER
-Function
Higher power than the regular 7th gear, providing stronger cutting ability.
-Activation
1. Click the “BOOST” button on the regular gear.
2. Or hold down the foot pedal power adjustment.
-Exit
1. Click the “BOOST” button again.
2. Use the foot pedal power adjustment.
3. Click the “—” button on the screen to return to the regular 7th gear.
Technical Information
– Input voltage: 100-240V, suitable for global use
– Power: 150VA, efficient and energy-saving
– Water flow: 20-100ml/min, precise control
– Tip amplitude: main amplitude <80um, lateral amplitude <20um, minimally invasive cutting
